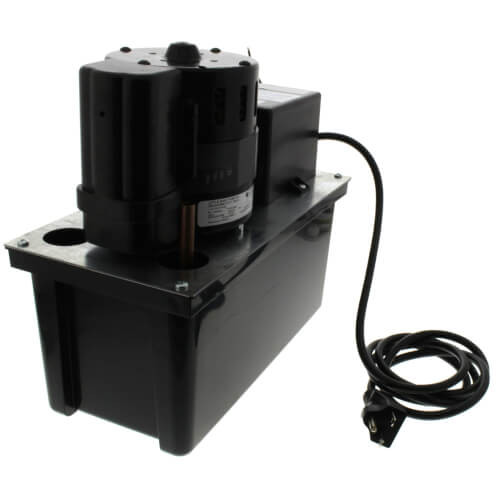

VCL-45 Series pump is rated for high-efficiency gas furnace applications that produce an acidic condensate
Product Features:
- Vertical type pump unit
- Leakproof, rustproof, ABS tank
- ABS switch cover and pump stand
- 3/8" O.D. copper tube discharge
- Safety switch included - can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow
- 45' shut-off head
- UL/CSA listed
- Thermal overload protected
Product Specifications:
- Motor - 1/5 HP
- 1 gallon tank capacity
- Intermittent Liquid Temp. up to - 120°F
- Flow - 450 GPH @ 1' of Head
- Discharge - 3/8" O.D.
- Housing - N/A
- Cover - Galvanized steel
- Motor Shaft - Stainless steel
- Shaft Seal - N/A
- Screen - ABS
- Cord Length - 6 ft
- Weight - 14 lbs
- Height - 10.5"
- Width - 6"
- Length - 12"
- Volute - ABS
- Impeller - Polypropylene
- Electrical - 230 V, 50/60 Hz, 1.0 Amps, 250 Watts, thermally protected motor
