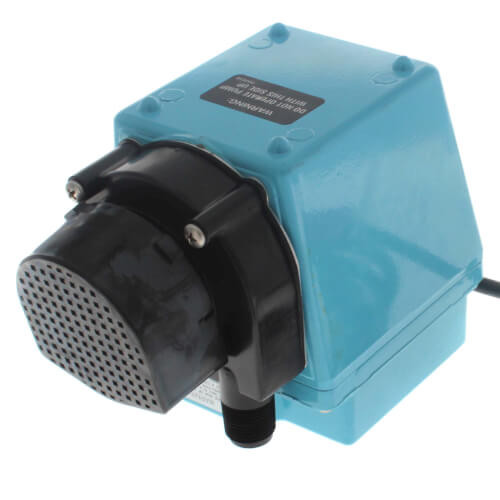

Small submersible oil-filled pump with epoxy coated cast aluminum housing. For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 300 GPH pump features a 1/4" MNPT discharge, 11.8' shut-off head capability, and screened inlet.
Features:
- Epoxy coated die-cast aluminum housing
- Oil-filled motor
- 11.8' maximum lift
- 100 watts
- 1/4" MNPT discharge
- Thermal overload protection
- For submersible use only
Construction
- Motor — 1/40 HP Oil Filled
- Intermittent Liquid Temp up to — 120°F
- Intake — Hooded/Screened
- Discharge — 1/4" MNPT
- Housing — Epoxy coated cast aluminum
- Cover — Epoxy coated cast aluminum
- Volute — Nylon
- Impeller — Nylon
- Shaft Seal — Nitrile
- Screen — Polypropylene
Specifications:
- Discharge Size: 1/4" MNPT
- Listing: UL
- Horse Power: 1/40
- Voltage: 115V
- Hertz: 60
- Amps: 1.7
- Wattage: 100
- Performance (GPM @ Head):
- 1' = 300
- 3' = 255
- 5' = 205
- 10' - 70
- Shutoff Ft: 11.8
- Shutoff: 5.1 PSI
- Cord Length: 6 ft.
